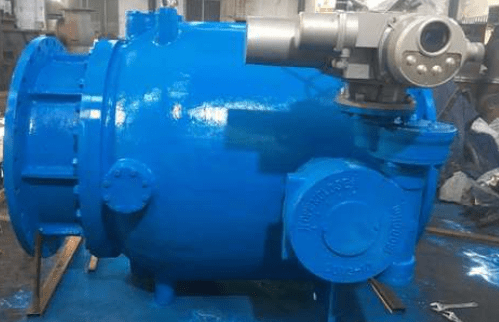

Plunger Valve
1.Front Body: Ductile Iron
2.Seat: Stainless Steel
3.Piston: Stainless Steel
4.Back Body: Ductile Iron
5.Pin: Steel
6.Lever: Stainless Steel
7.Clip: Stainless Steel
8.Shaft: Stainless Steel
9.Bottom Cover: Ductile Iron
10.Bushing: Bronze
11.Gland: Ductile Iron
12.Side Cover: Ductile Iron
B1. O Ring: NBR
B2. O Ring: NBR
B3. O Ring: NBR
B4: O Ring: NBR
B5. Inner Hex Bolt: Stainless Steel
B6. Inner Hex Bolt: Stainless Steel
B7. O Ring: NBR
B8. Key: Steel
B9. Bushing: PTFE
B10. Hex Bolt: Stainless Steel
B11. O Ring: NBR
B12. O Ring: NBR
B13. Inner Hex Bolt: Stainless Steel
B14. Hex Bolt: Stainless Steel
B15. O Ring: NBR
Size: DN100 to DN2000
Temperature Range: Up to 120°C
Pressure Rating: PN10, PN16, PN25
Connections: Flange
Body Material: Ductile Iron, Stainless Steel
Operating: Gear Operated, Electric, Pneumatic Actuated
Dimensions
Unit: mm
| Size | A | B | C | D | ||
| PN10 | PN16 | PN10 | PN16 | |||
| DN100 | 325 | 22 | 22 | 180 | 180 | 140 |
| DN125 | 325 | 22 | 22 | 210 | 210 | 160 |
| DN150 | 350 | 24 | 24 | 240 | 240 | 195 |
| DN200 | 400 | 24 | 24 | 295 | 295 | 220 |
| DN250 | 500 | 26 | 26 | 350 | 355 | 220 |
| DN300 | 600 | 26 | 28 | 400 | 410 | 280 |
| DN350 | 700 | 26 | 30 | 460 | 470 | 340 |
| DN400 | 800 | 26 | 32 | 515 | 525 | 440 |
| DN450 | 900 | 28 | 40 | 565 | 585 | 500 |
| DN500 | 1050 | 28 | 44 | 620 | 650 | 550 |
| DN600 | 1175 | 34 | 54 | 725 | 770 | 645 |
| DN700 | 1320 | 34 | 40 | 840 | 840 | 700 |
| DN800 | 1480 | 36 | 42 | 950 | 950 | 805 |
| DN900 | 1700 | 38 | 44 | 1050 | 1050 | 895 |
| DN1000 | 1900 | 38 | 46 | 1160 | 1170 | 1030 |
| DN1200 | 2100 | 44 | 52 | 1380 | 1390 | 1155 |
| DN1400 | 2420 | 48 | 58 | 1590 | 1590 | 1390 |
